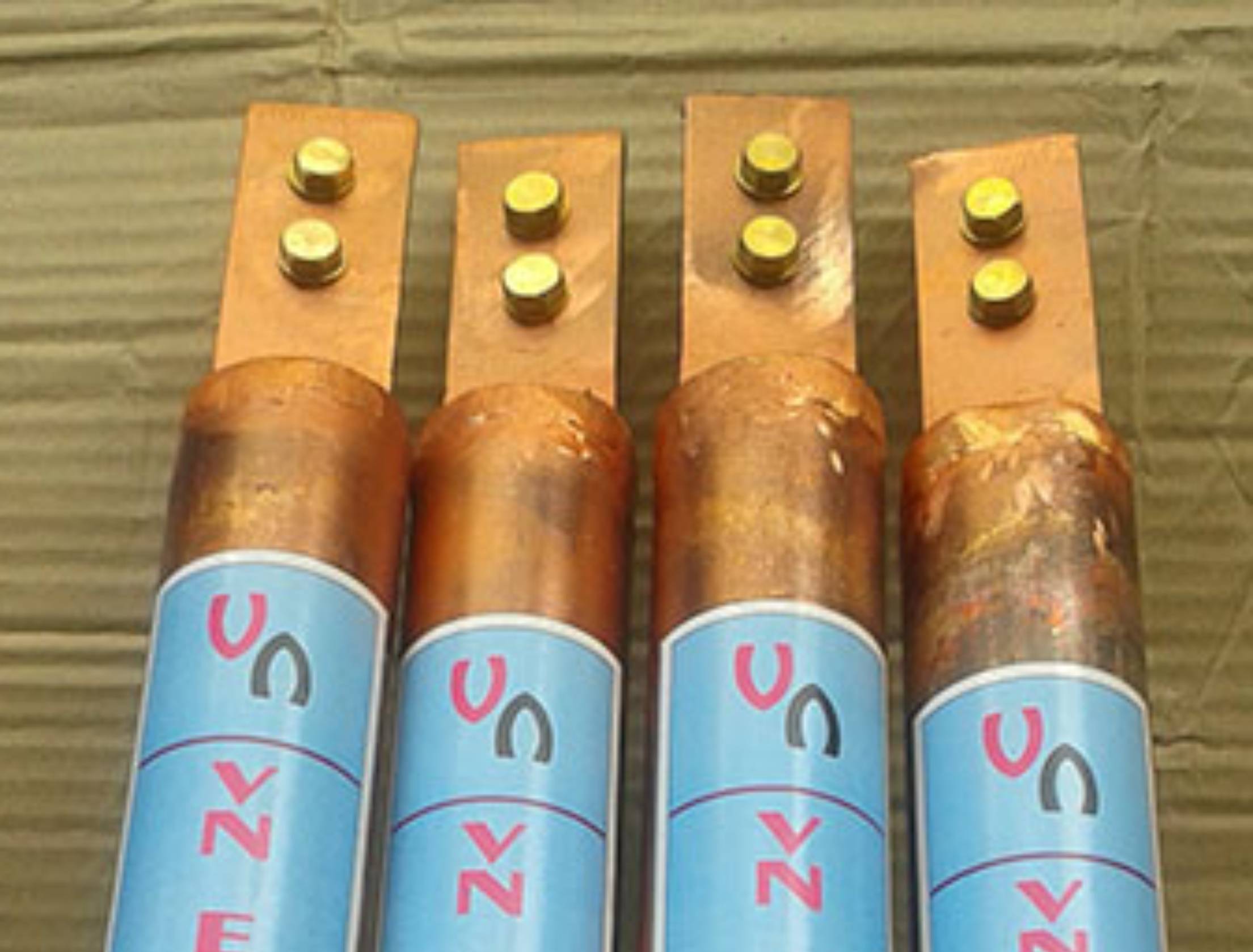

AVAILABLE SIZES AND SPECIFICATIONS
| GI & Copper Electrode size | Copper Bonded Electrode Size | CI Earth Electrode |
| 40 x 2 | 17.2 x 1 | 75 x 2 |
| 40 x 3 | 17.2 x 2 | 75 x 3 |
| 50 x 2 | 17.2 x 3 | 100 x 2 |
| 50 x 3 | 19 x 1 | 100 x 3 |
| 19 x 2 | 150 x 2 | |
| 19 x 3 | 150 x 3 | |
| 25 x 1 | ||
| 25 x 2 | ||
| 25 x 3 |
Chemical Earthing Specifications
- Two types of powders that are used in chemical earthing are Bentonite Powder and Marconite Powder, which maintains the resistivity of the soil.
- Earthing with Bentonite Powder is used in a normal place while earthing with Marconite Powder is used in a dry place, when soil resistivity is very high.
- Marconite has far low resistance and is the best ground enhancement material compared to others.
- But due to its higher cost, its usage is limited when compared to Bentonite.
CAST IRON EARTH ELECTRODES – CI PIPE EARHTING
Earthing is important when it comes to safety of human life and equipment. It finds its use in power generation, wind & solar energy, transmission & distribution, explosive magazines, heavy industries, telecommunication towers, generators and commercial & domestic housing applications.
In this offering our range of products include with G.I. clamp, with flange, with G.I. clamp & funnel and with cone. Apart from these products we also have accessories such as round and square earth pit covers (cast iron and ductile iron).
Advantages of CAST IRON EARTHING over other normal earthing system are that it is
- Durable & reliable.
- Excellent connectivity & conductivity.
- Excellent & uniform current dissipation.
- Less overall cost of ownership.
- Easy installation.
- Safety to human life & electrical system.
- Electrical resistivity of C.I. is 0.8 μΩ/mtrs.
- Higher surface area of contact.
- Best in class corrosion resistance.
| LT Earthing | HT Earthing | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| NB | OD | Thickness | Length Available | NB | OD | Thickness | Length Available | ||||||||
| 50 | 57 | 3.5 | 1500 | 1800 | - | - | - | 100 | 114 | 7.0 | 2500 | 2750 | 3000 | ||
| 75 | 82 | 3.5 | 1500 | 1800 | 2500 | 2750 | 2900 | 100 | 120 | 10.0 | 2500 | 2750 | 3000 | ||
| 100 | 108 | 4.0 | 1500 | 1800 | 2500 | 2750 | 2900 | 100 | 126 | 13.0 | 2500 | 2750 | 3000 | ||
| 150 | 160 | 5.0 | 1500 | 1800 | 2500 | 2750 | 2900 | 150 | 170 | 10.0 | 2500 | 2750 | 3000 | ||
| 150 | 176 | 13.0 | 2500 | 2750 | 3000 | ||||||||||
| • all dimesnsion are in multimer | • all dimesnsion are in multimer | ||||||||||||||

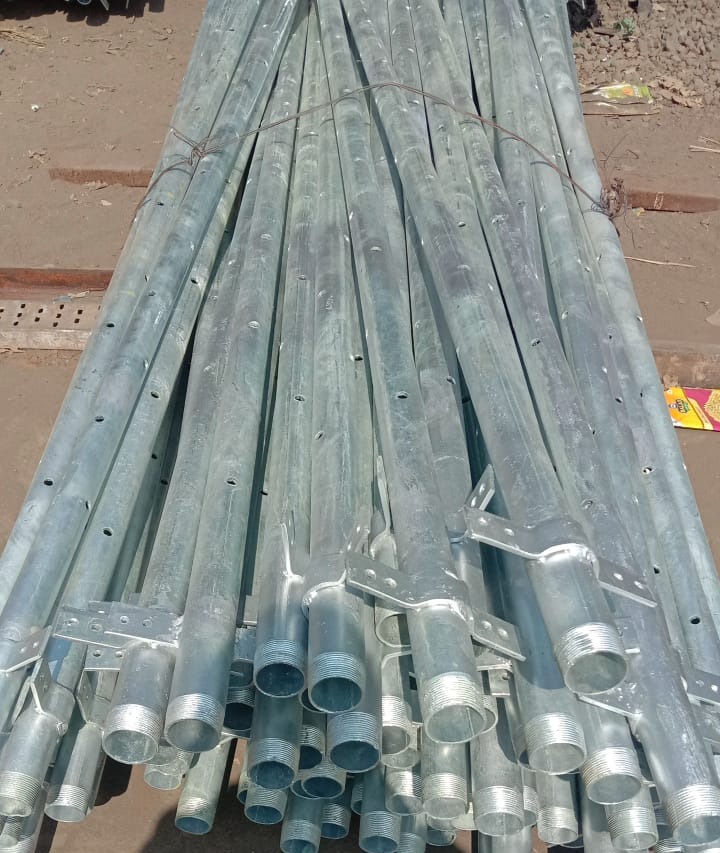

GI Pipe Electrode

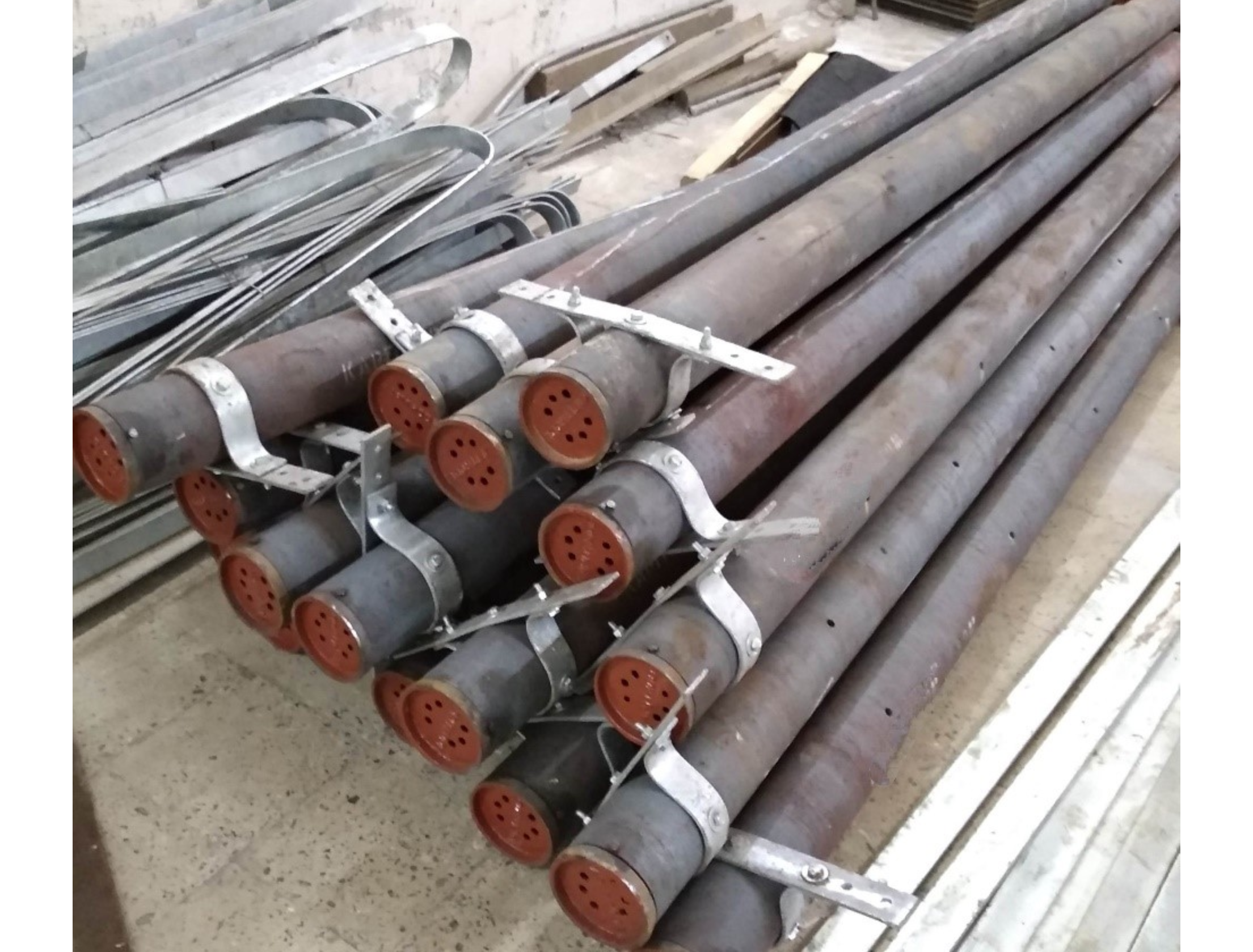

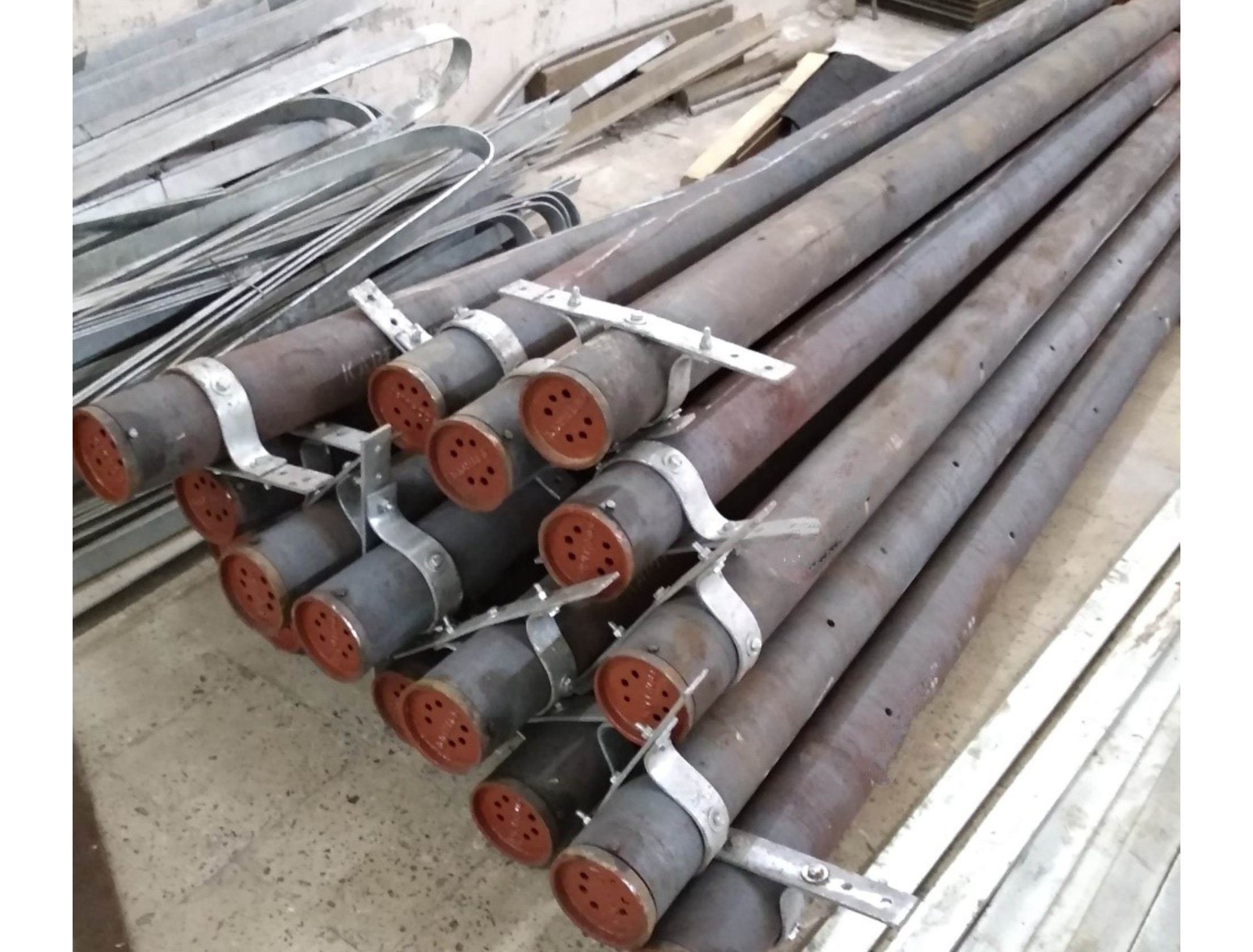

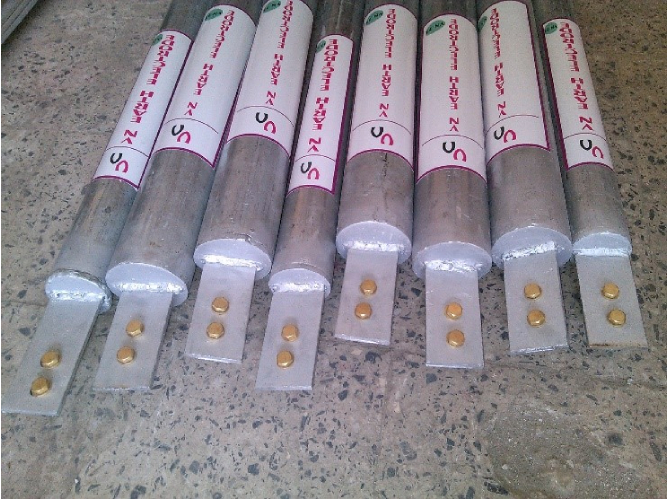

GI Pipe Electrode (Make - VN Earth Electrode)
- Pipe Electrodes are manufactured from MS pipe with clamp and cap welded to it.
- Then the process of HotDip Galvanizing is done as per IS 2633/4759/2629.
- Zinc coating is to be of minimum 100 micron (pipe outer dia) and 300 micron (pipe inner dia) for long and Durable Life.
- Highly Used in Chemical and mining factory.
