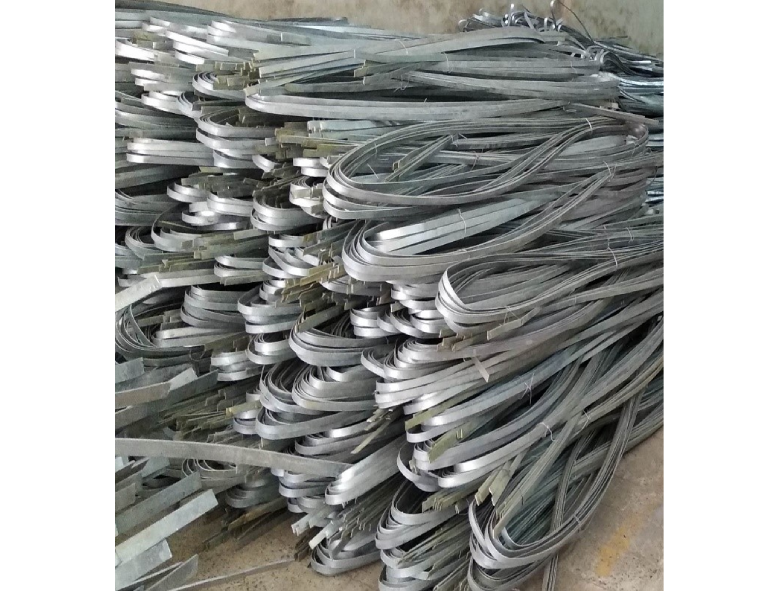

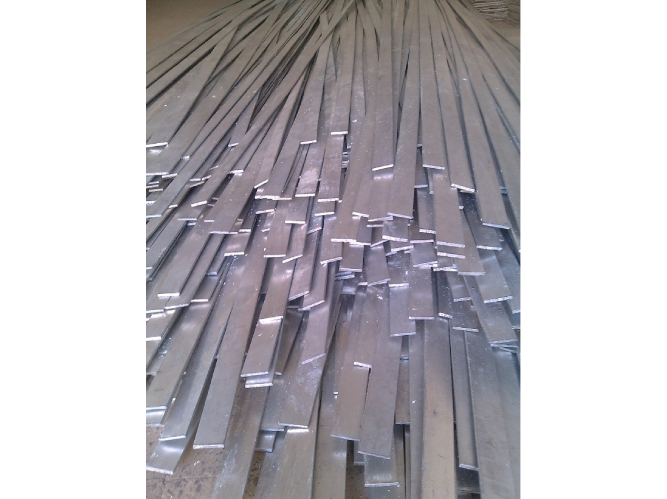

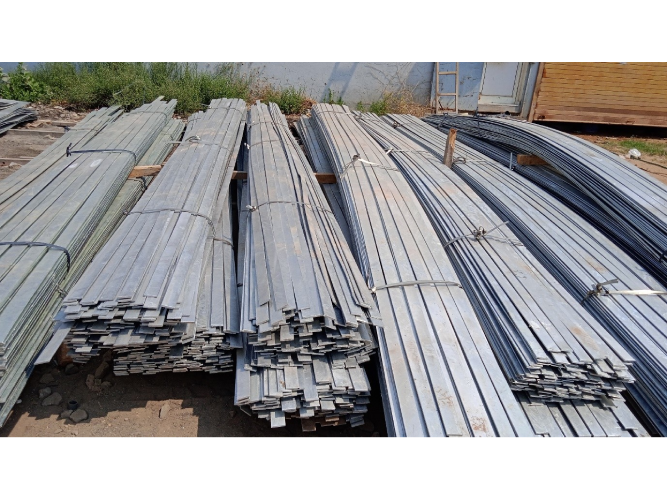

AVAILABLE SIZES AND SPECIFICATIONS
| S.No. | Material Description | G.I. STRIP / Earthing Strips |
| 1. | Make | PROTECT |
| 2. | Standard Size (in mm) | 25x3 / 25x6 / 32x6 / 40x6 / 50x6 50x10 / 65x8 / 65x10 / 75x10 Other size available on request |
| 3. | Tolerance | +/- 0.25mm |
| 4. | Galvanizing coating | In accordance with IS 2629 / 4759 |
| 5. | Thickness of Zinc coating | 86 Microns Minimum |
| 6. | Zinc | Confirming to Zn 98 of IS 209-1992 |
| 7. | Colour | Silver |
| 8. | Finish | Hot dip Galvanized |
| 9. | Electrical Conductivity | Good |
| 10. | Tested | CPRI |
GI ANGLE
comming soon ...

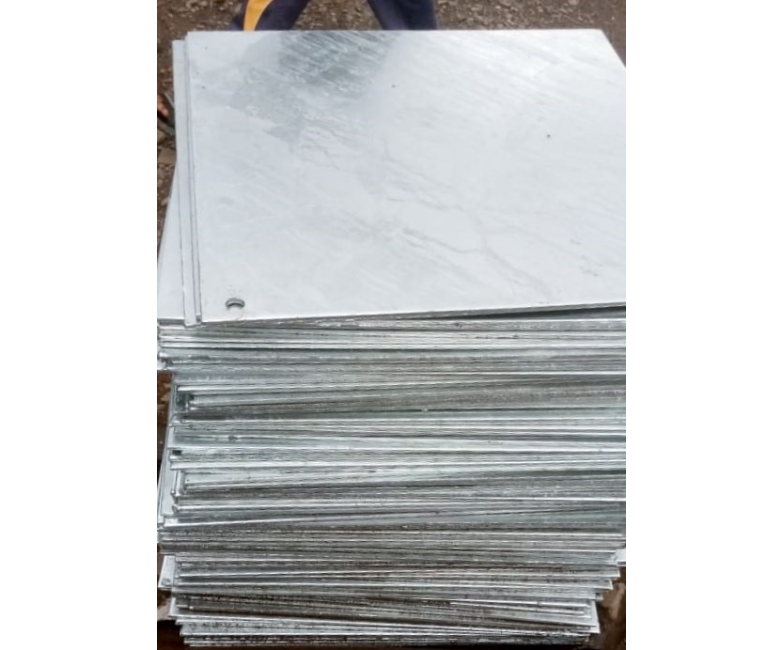

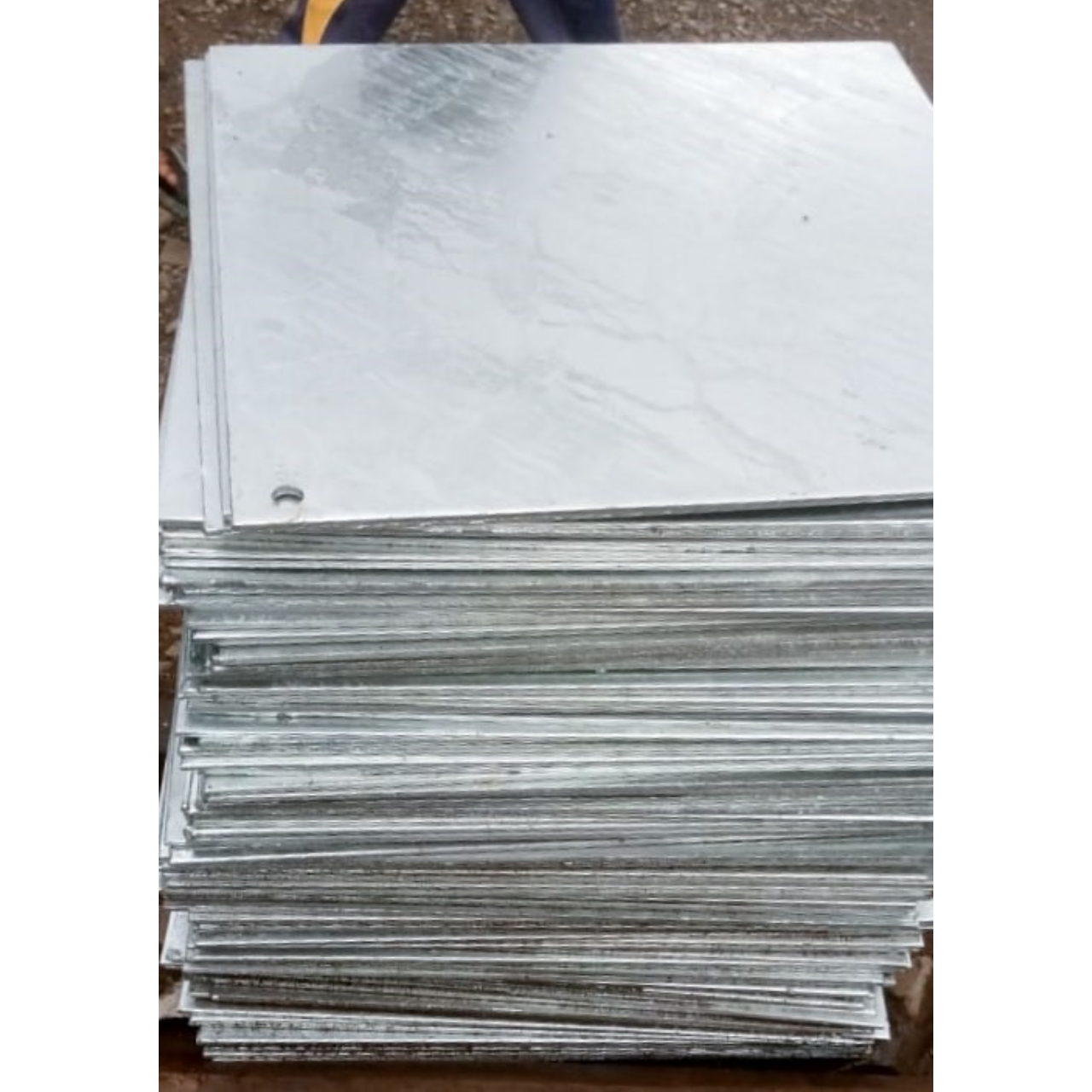

GALVINIZED IRON (GI) PLATE – HOT DIP
| S.No. | Material Description | G.I. STRIP / Earthing plates |
| 1. | Make | PROTECT |
| 2. | Standard Size (in mm) | 300 x 300 450 x 450 600 x 600 |
| 3. | Thickness | 3 mm / 5 mm / 6 mm |
| 3. | Tolerance | +/- 0.25mm |
| 4. | Galvanizing coating | In accordance with IS 2629 / 4759 / 2633 |
| 5. | Thickness of Zinc coating | 86 Microns Minimum |
| 6. | Zinc | Confirming to Zn 98 of IS 209-1992 |
| 7. | Colour | Silver |
| 8. | Finish | Hot dip Galvanized |
| 9. | Electrical Conductivity | Good |

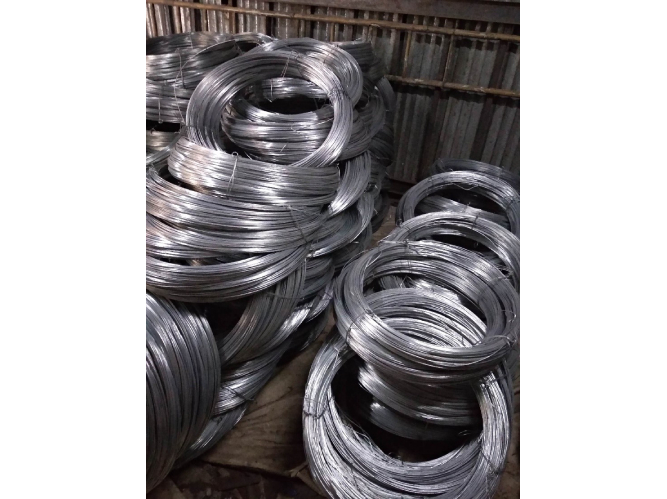

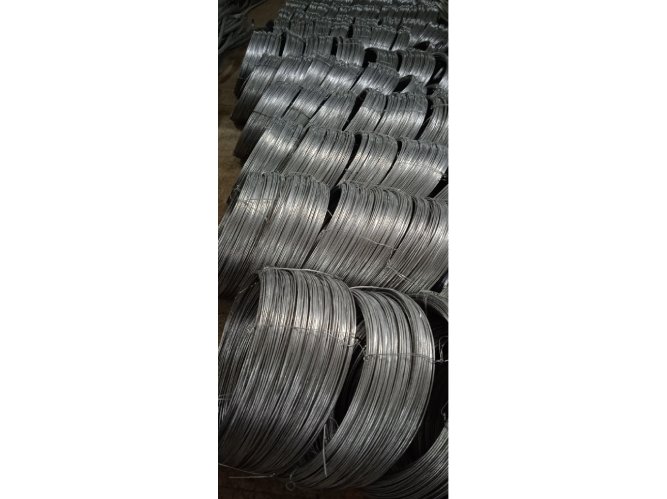

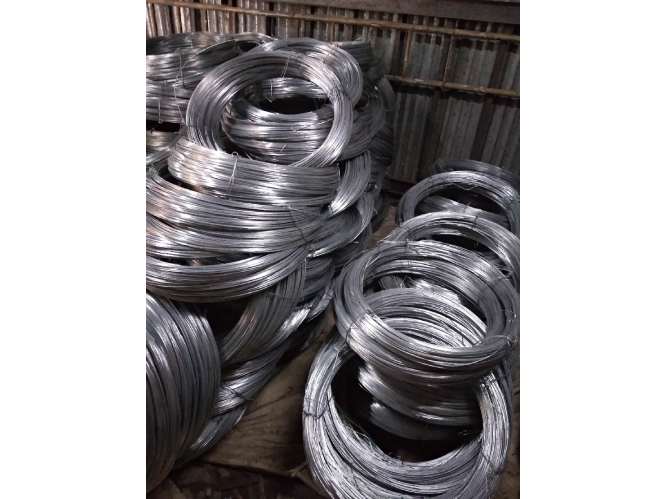

GALVINIZED IRON (GI) Wire
| S.No. | Material Description | GI Wire |
| 1. | Mainly used | Earthing and Fencing Purpose |
| 2. | Available in size(mm) | 1.50 mm to 6.00 mm Thickness i.e. 14 swg to 6 swg |
| 3. | Galvanizing coating | As Per IS 2633/4759 |
| 4. | Finish | Hot dip Galvanized |
